2.54mm Integrated Circuit Socket Round Hole IC Socket Patch Min 500 Cycles
  • 2.54mm Integrated Circuit Socket Round Hole IC Socket Patch Min 500 Cycles

2.54mm Integrated Circuit Socket Round Hole IC Socket Patch Min 500 Cycles

Place of Origin Dong Guan China
Brand Name Wei Ting
Certification SGS RoHS ISO9001,UL
Model Number WT1021-6
Product Details
Operating Temperature:
-55℃~+105℃
Insulator:
Black Glass Filled Polyester
Mating Pin:
Φ0.40 To 0.56mm
Current Rating:
3Amps/contact Mas
High Light:

idc ribbon connector

,

d sub connector

Payment & Shipping Terms
Minimum Order Quantity
1000
Price
Can negotiate
Packaging Details
200 / Package
Delivery Time
3-30 Working Days Based On Your Finally Quantities
Payment Terms
L/C, T/T
Supply Ability
5000000PCS/Month
Product Description

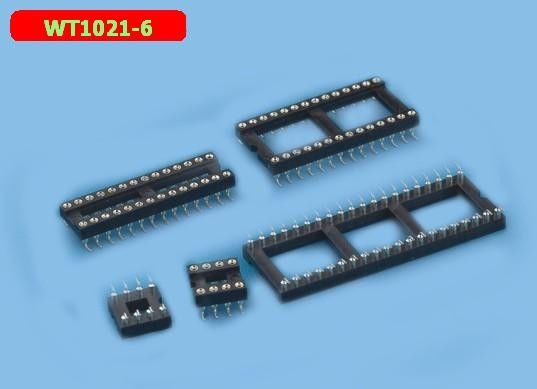

WT1021-6 2.54mm round hole IC socket patch factory direct


Technical Data

Insulator: Black glass filled polyester

Flammablility: UL 94V-0

Sleeve: Brass CuZn36Pb3

Contacts Clip(4finger):Beryllium copper

Mating pin: Φ0.40 to 0.56mm

Forces:(polished steel gauge Φ0.43)

Mechanical life:min 500 cycles

Current rating: 3Amps/contact mas

Contact resistance:max 10MΩ

Dielectric strength:min 1000VRMS

Plating: Gold plated/Tin plated

Operating temperature: -55°C~+105°C

Soldering temperature: +245°C ± 5°C, 5s max




Yuting Hardware Products Co., Ltd. is a professional manufacturer of copper strips, electronic connectors and terminal blocks.



The electronic connectors are: pin header, busbar, pin header, DC3 simple horn pin (Jane), DC2 horn pin (horn socket), IDC connector (FC type flat cable connector), DIP PLUG connection (FD type flat cable connector), locking double row test socket, 805 type gold finger socket, CY401 printed board socket, round hole socket, double round pin header, round hole pin header, round Hole IC socket, flat foot IC socket, dip switch (dial switch), DIN41612 European socket connector, short circuit block, short circuit cap (jumper cap), D-SUB connector, D-SUB connector assembly housing, gray row Line, rehearsal line, various wire harness processing, SCSI connector, bus socket, PLCC socket, aviation plug aviation socket, IP65-IP68 round waterproof connector, breadboard, etc. Mainly used in smart meters, LED lighting, computers, consumer electronics, communications equipment and LED display.



Terminal blocks are: screw type PCB terminal block, spring type PCB terminal block, plug-in type terminal block, fence type terminal block, through type terminal block, rail type terminal block, WAGO screwless connector terminal block. Mainly used in security, lighting, instrumentation, industrial power, electronic professional equipment and other fields.

2.54mm Integrated Circuit Socket Round Hole IC Socket Patch Min 500 Cycles 02.54mm Integrated Circuit Socket Round Hole IC Socket Patch Min 500 Cycles 1
