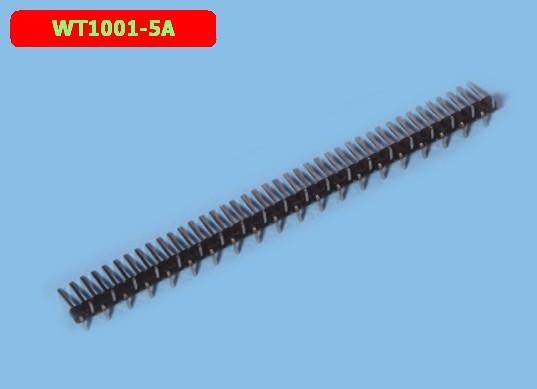

High Performance 2.0MM Connector Pin Header Tin Plating Custom Service
  • High Performance 2.0MM Connector Pin Header Tin Plating Custom Service
  • High Performance 2.0MM Connector Pin Header Tin Plating Custom Service

High Performance 2.0MM Connector Pin Header Tin Plating Custom Service

Place of Origin Dong Guan China
Brand Name Wei Ting
Certification SGS RoHS ISO9001,UL
Model Number WT1001-5A
Product Details
Contact:
Brass
Plating:
Gold Plating Silver
Housing:
PBT Filled With 30% Glass Fiber, Fire Rating UL94V-0
Storage Temperature:
-20 ° C ~ +70 ° C
Operating Temperature:
-40 ° C ~ +105 ° C
Insulation Resistance:
1000 Ohms Minimum At 500V DC
High Light:

2.54 mm female header

,

90 degree header pins

Payment & Shipping Terms
Minimum Order Quantity
1000
Price
Can negotiate
Packaging Details
200 / Package
Delivery Time
3-30 Working Days Based On Your Finally Quantities
Payment Terms
L/C, T/T
Supply Ability
5000000PCS/Month
Product Description

WT1011-5A 2.0MM 1*1PIN--1*40PIN single row patch pin single row SMT pin factory direct





Material:

Housing: PBT filled with 30% glass fiber, fire rating UL94V-0

Contact: brass

Plating: gold plating

silver

Tin plating

Electrical characteristics:

Storage temperature: -20 ° C ~ +70 ° C

Operating temperature: -40 ° C ~ +105 ° C

Rated current: 2AMP

Insulation resistance: 1000 ohms minimum at 500V DC

Contact resistance: up to 20 milliohms at 100mA

Medium withstand voltage: AC1000V



Yuting Hardware Products Co., Ltd. is a professional manufacturer of copper strips, electronic connectors and terminal blocks.



The electronic connectors are: pin header, busbar, pin header, DC3 simple horn pin (Jane), DC2 horn pin (horn socket), IDC connector (FC type flat cable connector), DIP PLUG connection (FD type flat cable connector), locking double row test socket, 805 type gold finger socket, CY401 printed board socket, round hole socket, double round pin header, round hole pin header, round Hole IC socket, flat foot IC socket, dip switch (dial switch), DIN41612 European socket connector, short circuit block, short circuit cap (jumper cap), D-SUB connector, D-SUB connector assembly housing, gray row Line, rehearsal line, various wire harness processing, SCSI connector, bus socket, PLCC socket, aviation plug aviation socket, IP65-IP68 round waterproof connector, breadboard, etc. Mainly used in smart meters, LED lighting, computers, consumer electronics, communications equipment and LED display.



Terminal blocks are: screw type PCB terminal block, spring type PCB terminal block, plug-in type terminal block, fence type terminal block, through type terminal block, rail type terminal block, WAGO screwless connector terminal block. Mainly used in security, lighting, instrumentation, industrial power, electronic professional equipment and other fields.
