Automobile Male And Female 12 Pin Connector With Rubber Shell
  • Automobile Male And Female 12 Pin Connector With Rubber Shell
  • Automobile Male And Female 12 Pin Connector With Rubber Shell
  • Automobile Male And Female 12 Pin Connector With Rubber Shell

Automobile Male And Female 12 Pin Connector With Rubber Shell

Place of Origin China
Brand Name WT
Certification UL、ISO 9001、RoHS
Model Number 63080 6.3mm/XH 2.5mm/XHB/SCN/JC20/TJC8
Product Details
Insulation Resistan:
≥1000MΩ Min
Production Process:
Injection Molding
Withstand Voltage:
1500V AC/min
Material:
Nylon 66
Voltage Rating:
300V AC,DC
Temperature Range:
-25℃~85℃
High Light:

Male And Female 12 Pin Connector

,

Automobile 12 Pin Connector

,

Rubber Shell Automotive Electrical Connectors

Payment & Shipping Terms
Price
Get the latest price
Packaging Details
Export Cartons
Delivery Time
3-30 Working Days Based On Your Finally Quantities
Payment Terms
L/C, T/T
Supply Ability
5000000/Month
Product Description

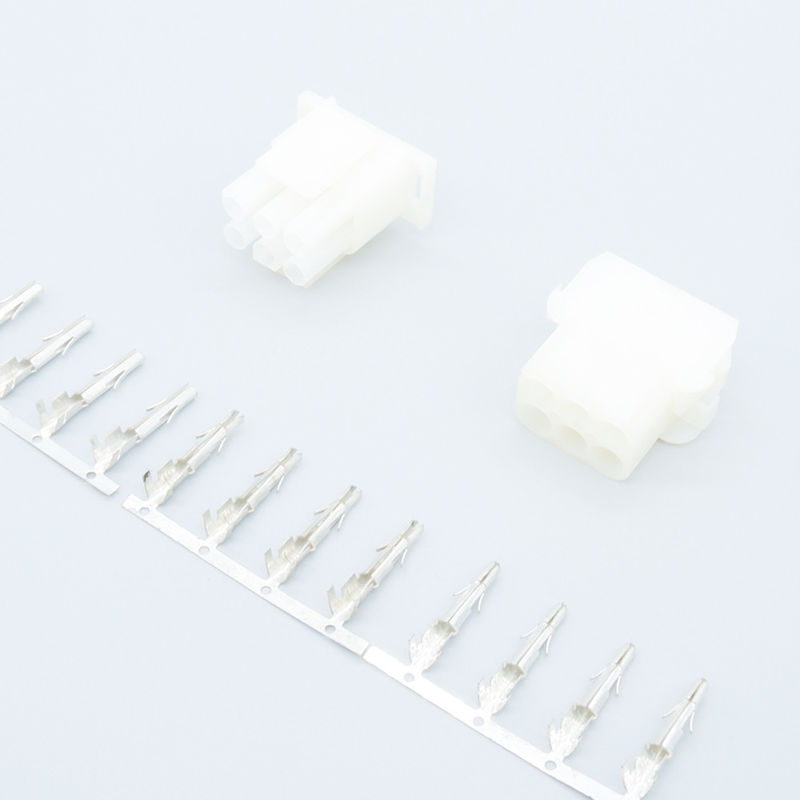

Automobile 63080 Male And Female 12-Pin Connector Housing Elevator Car Motor Plug Rubber Shell Terminal



Specifications

Poles: 1, 2, 3, 4, 6, 8, 9, 10, 12, 15

Applicable wire: AWG 20 #~AWG 16 #

Applicable PC board thickness: 1.6mm

Temperature range: -20 ℃~10 5℃

Rated voltage: 300 V.Ac/Dc

Current rating: 13 A maximum

Contact resistance: ≤0.0 1 Ω

Insulation resistance: ≥ 10 00MΩ

Withstand voltage: 18 00V. Communication/1 minute

Material:

Shell: Nylon UL94V-2(0)

Wafer: PA-9T UL94V-2(0)

Terminal: Phosphorus. Bronze tin/plated





Q1: Do you offer customized product ?

A: Yes, we can develop new mold at you need if you can provide us with the samples or drawings and specification.



Q2: Are you a factory?

A: Yes, we are the professional manufacturer of connectors and precision mold since 1994.



Q3: How long is the delivery time?

A: We ensure the fast delivery. Generally, it will take 2-5 days for small order or the stock goods; 10 to 15 for mass production after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Please contact us for details.
